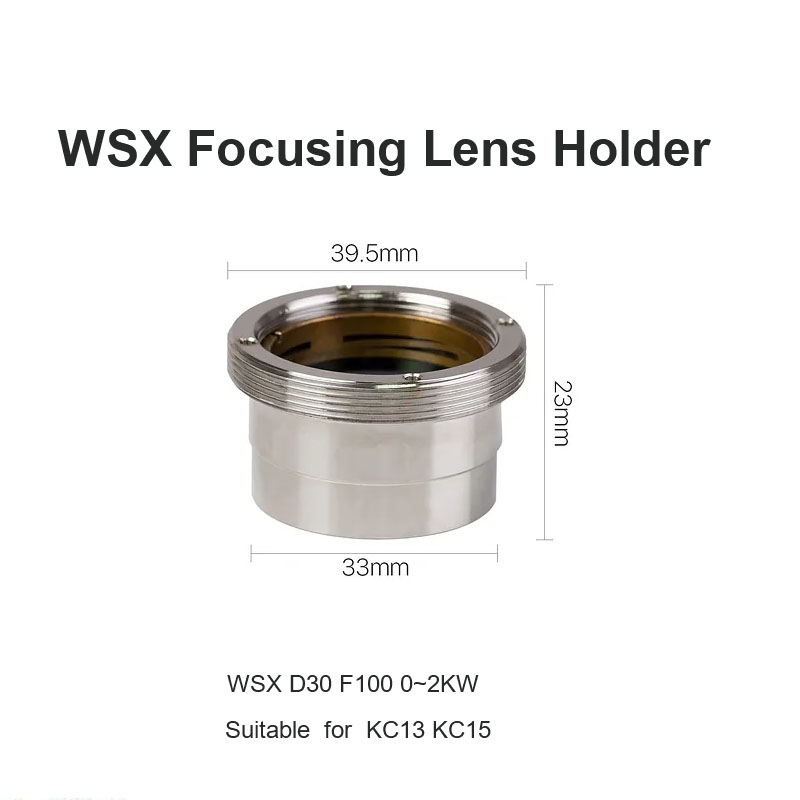

WSX Focusing Lens Holder D30 F100

Product Overview

Constructed from lightweight 7075 aluminum alloy with a hard anodized coating, this holder securely mounts 30mm diameter focusing lenses with a 100mm focal length, optimized for 1010–1090nm fiber laser systems up to 6KW. Its streamlined design minimizes weight while maximizing rigidity, making it ideal for high-speed laser cutting heads where dynamic performance is critical. Specifically engineered for WSX NC60 and NC80 laser heads, it maintains optical stability even during rapid traverse movements exceeding 140 m/min .

Product Features

Lightweight High-Strength Design: 7075 aluminum alloy reduces mass by 30% compared to steel holders while providing 480 MPa tensile strength for vibration resistance .

Precision Optical Alignment: Achieves ±0.002mm concentricity between lens axis and laser beam path, ensuring consistent spot size across the cutting area.

Enhanced Heat Dissipation: The black anodized finish increases thermal emissivity by 50% compared to natural aluminum, aiding in passive cooling.

Tool-Free Lens Replacement: Features a quick-release clamping mechanism that allows lens changes in under 60 seconds without specialized tools.

Product Applications

This focusing lens holder excels in precision short-focal-length applications:

Electronics Manufacturing: Enables micron-level cutting of thin metal foils (0.1–2mm) for smartphone components and circuit boards.

Jewelry Fabrication: Supports intricate cutting and engraving of precious metals with fine detail resolution.

Medical Device Production: Provides the precision required for manufacturing small stainless steel components with tight tolerances.

Automotive Micro-Components: Ideal for cutting small precision parts like sensor contacts and connector pins.

FAQ

Q: What is the advantage of a 100mm focal length over longer options?

A: The shorter focal length produces a smaller laser spot (30–50μm) for finer detail, though with a reduced working distance compared to 150mm holders.

Q: Can it accommodate anti-reflective coated lenses?

A: Yes, it is compatible with all standard 30mm diameter lenses, including those with multi-layer anti-reflective coatings optimized for 1064nm.

Q: Is it compatible with WSX’s automatic focus adjustment systems?

A: Yes, it integrates seamlessly with WSX’s autofocus modules, maintaining alignment during dynamic focus adjustments.

Q: What maintenance is required?

A: Clean the lens seat with isopropyl alcohol monthly; inspect clamping mechanism for wear every 1000 hours. Replace O-rings annually to maintain dust tightness.
