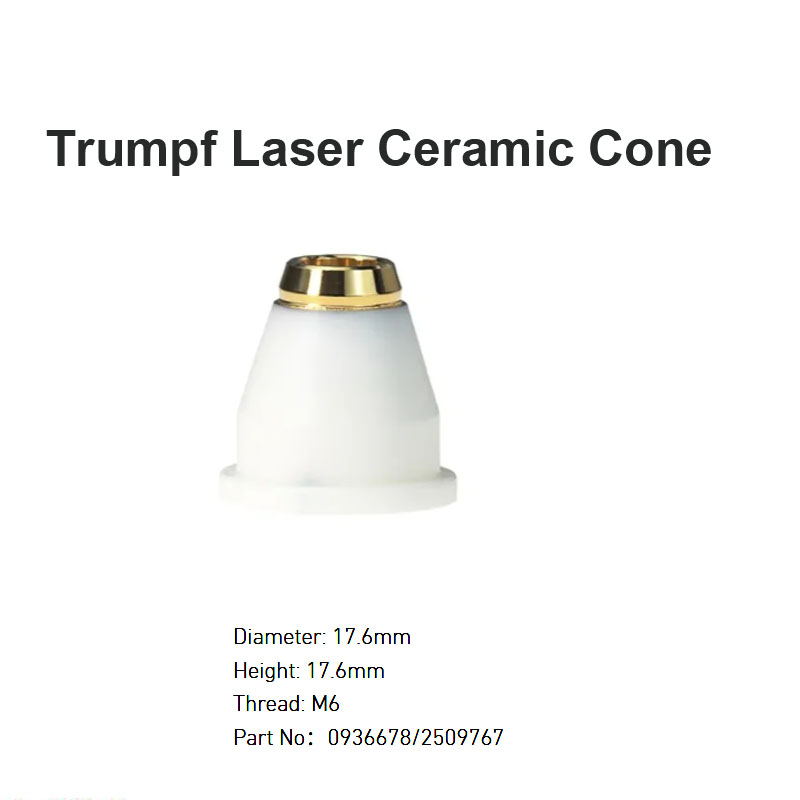

The Trumpf Laser Ceramic Cone D17 6mm stands as a critical high-precision component engineered for laser cutting machine heads, specifically designed to withstand extreme thermal and mechanical stress in industrial laser systems.
| Availability: | |
|---|---|
Crafted from imported high-performance ceramics, this cone features a precise 17mm diameter and 6mm thickness, ensuring seamless compatibility with Trumpf laser cutting heads, including popular models in the TruMatic series. Its robust construction serves as a thermal barrier and electrical insulator, protecting sensitive internal components from heat damage and electrical interference during high-power laser operations. Whether used in metal fabrication or heavy-industry laser processing, this ceramic cone maintains dimensional stability even under prolonged exposure to intense laser energy.
Premium Ceramic Material: Made from high-density imported ceramics, the cone exhibits exceptional heat resistance, capable of withstanding temperatures up to 500°C (932°F) without deformation. This material also provides superior electrical insulation, preventing short circuits in laser head assemblies .
Precision Engineering: With tight dimensional tolerances of ±0.05mm, the D17 6mm cone ensures a perfect fit with Trumpf laser head components, minimizing air leakage and optimizing airflow dynamics around the laser beam path.
Durability & Wear Resistance: The ceramic surface resists abrasion from metal splatters and debris, extending the component’s service life to approximately 10,000 operational hours under standard conditions.
Thermal Stability: Unlike metal alternatives, the ceramic cone does not conduct heat, reducing the risk of thermal damage to adjacent optical elements such as focusing lenses.
This ceramic cone is indispensable in high-power laser cutting systems across various industries:
Automotive Manufacturing: Used in laser cutting of steel and aluminum components, where precision and heat resistance are critical.
Aerospace Engineering: Supports cutting of high-strength alloys, ensuring consistent performance in demanding environments.
Heavy Machinery Production: Integral to laser systems processing thick metal sheets up to 8mm mild steel or 6mm stainless steel .
Metal Fabrication Workshops: Compatible with Trumpf TruFlow 3200 laser sources, enhancing reliability in daily high-volume operations.
Q: How often should the Trumpf Laser Ceramic Cone D17 6mm be replaced?
A: Under normal operating conditions (8 hours/day, 5 days/week), the cone typically lasts 10,000–15,000 hours. However, frequent cutting of reflective materials (e.g., copper) may shorten its lifespan to 8,000 hours due to increased thermal stress.
Q: Is this ceramic cone compatible with non-Trumpf laser heads?
A: While designed for Trumpf systems, it may fit select third-party heads with identical dimensional requirements. Always verify compatibility with your machine’s specifications.
Q: Can the cone withstand laser powers above 3200W?
A: Yes, it is rated for use with laser powers up to 6KW, making it suitable for high-intensity cutting applications.
Q: How to inspect for damage?
A: Regularly check for cracks, chips, or discoloration. Even minor damage can disrupt airflow, leading to uneven cutting or component overheating.
