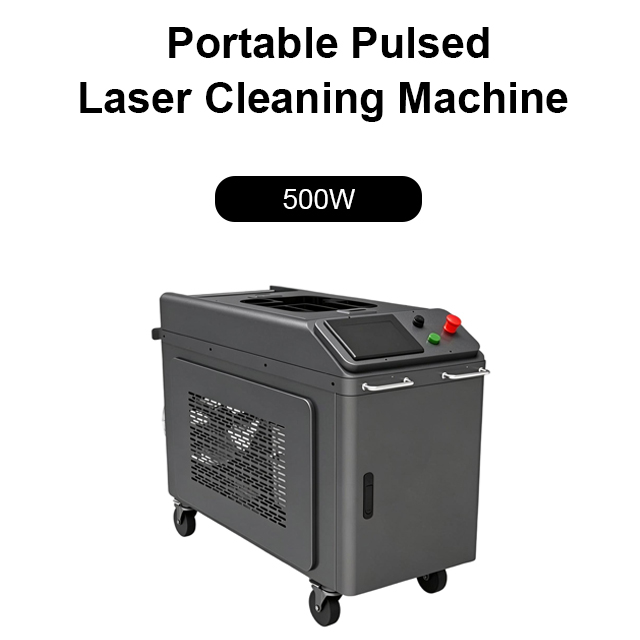

This is a compact portable fiber laser cleaning machine, designed for efficient surface treatment of metal workpieces. It adopts an integrated cabinet structure with built-in control panel, emergency stop button and movable casters, making it suitable for workshop use and on-site operations.
Model Features
Compact integrated cabinet design
Pulsed fiber laser cleaning technology
Built-in control panel and emergency stop switch
Non-contact and non-abrasive cleaning
Applications
The laser cleaning machine can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits, and other industries. With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
Laser Power | 500W | |
Power Supply | Single-phase 220 V AC ±10 %, 50/60 Hz | |
Total Power Consumption | ≤ 5,000 W | |
Operating Environment | 0 to 40 °C, relative humidity ≤ 80 % | |
Average Laser Power | ≥ 500 W; upper limit not specified | |
Power Fluctuation | < 5 % | |
Operating Mode | Pulsed | |
Pulse Duration | 30–500 ns; other documentation states 1–1,000 ns | |
Maximum Single Pulse Energy | 15–50 mJ; assignment to laser source not defined | |
Power Adjustment | 10–100 % | |
Pulse Repetition Frequency | 1–4,000 kHz | |
Fiber Length | 10 m | |
Cooling Method | Water cooling | |
Scanning Range | 0–300 mm, continuously adjustable per datasheet | |
Scanner | 2 axes, 13 scan patterns | |
F-theta Lens | F254; optional F160 / F254 / F330 / F420 | |
Machine Dimensions | Approx. 1,075 × 458 × 796 mm | |
Mode of Operation | Handheld; automated operation requires separate approval | |
