Model Features

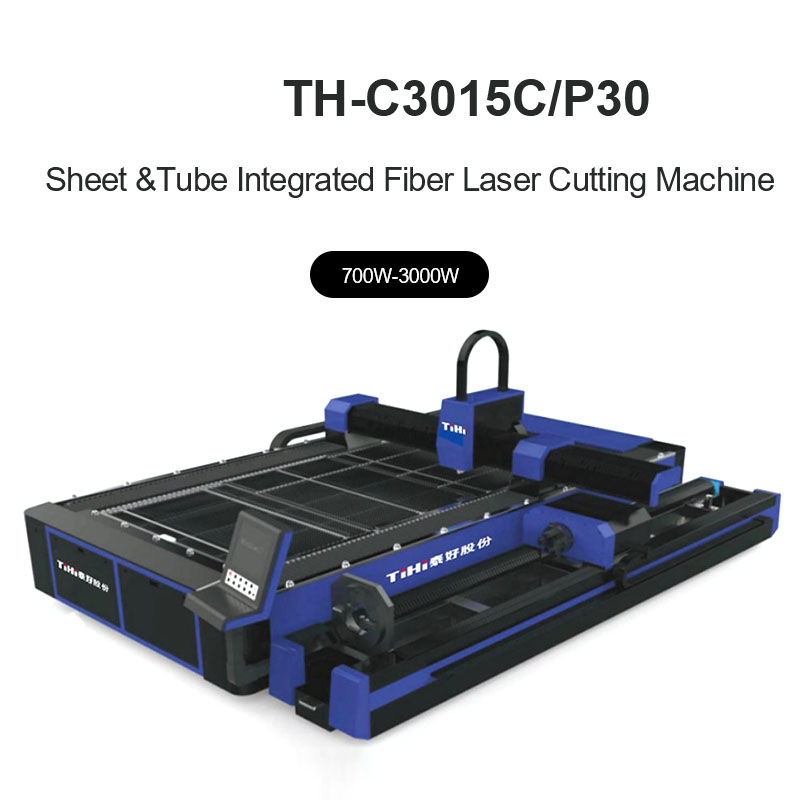

Used for cutting sheet metal and tube metal, cost saving and high performance .
Integrated design, space saving, suitable for fast loading
Applications
Used in kitchen appliances, sheet metal cabinet chassis, mechanical equipment, electrical equipment, lighting hardware, advertising signs, auto parts, display equipment, all kinds sheet metal cutting processing.
| Model No: | TH-C4020B/P60 | TH-C3015B/P60 | TH-C4020B/P30 | TH-C3015B/P30 |
| Laser Power: | 1000W-3000W | 1000W-3000W | 1000W-2000W | 1000W-2000W |
| Working Range | 4000x2000mm | 3000x1500mm | 4000x2000mm | 3000x1500mm |
| ⊘10-⊘220mmx6000mm | ⊘10-⊘220mmx6000mm | ⊘10-⊘220mmx3000mm | ⊘10-⊘220mmx3000mm | |
| 150x150mmx6000mm | 160x160mmx6000mm | 160x160mmx3000mm | 160x160mmx3000mm | |
| Y1 Axis Track: | 4050mm | 3050mm | 4050mm | 3050mm |
| Y2 Axis Track: | 6200mm | 6200mm | 3200mm | 3200mm |
| X Axis Track: | 3325mm | 2825mm | 3325mm | 2825mm |
| W Axis Track: | Infinite rotation | Infinite rotation | Infinite rotation | Infinite rotation |
| Z Axis Track: | 330mm | 330mm | 330mm | 330mm |
| X/Y1/Y2 Axis accuracy: | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
| Max acceleration : | 1.0G | 1.0G | 1.0G | 1.0G |
| Max Idling Speed: | 100m/min | 100m/min | 100m/min | 100m/min |
| Max load of work table: | 1.5T | 1T | 1T | 0.8T |
| Max .Load of pipe work table | 0.4T | 0.4T | 0.2T | 0.2T |
| Net Weight : | 13T | 9T | 9.5T | 7T |
| Dimension（LxWxH)： | 10300x4200x1600mm | 8300x3700x1600mm | 9000x4200x1600mm | 8300x3700x1600mm |
