This handheld compact fiber laser cleaner is a professional laser surface treatment tool. Featuring lightweight, portable construction, flexible parameter adjustment and wireless control, it delivers efficient removal of rust, stains and oil contamination from workpiece surfaces.
Model Features
MOPA pulsed fiber laser source, 200W/300W/500W optional

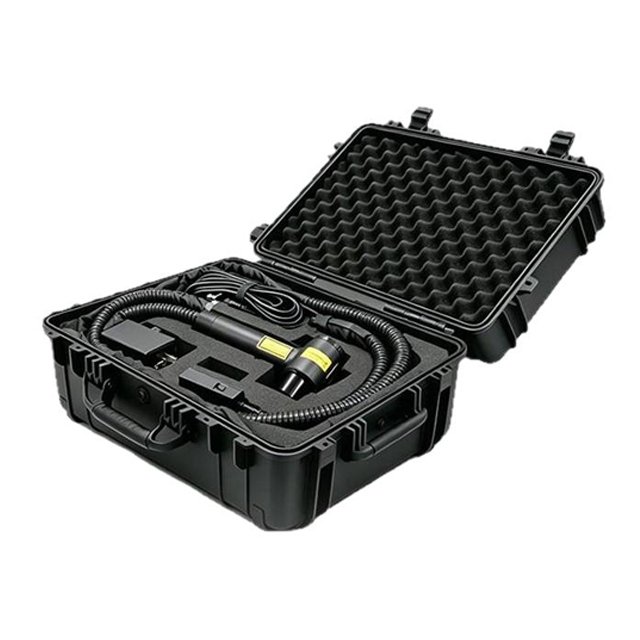

Handheld cleaning gun, simple operation
Precise cleaning, controllable laser energy

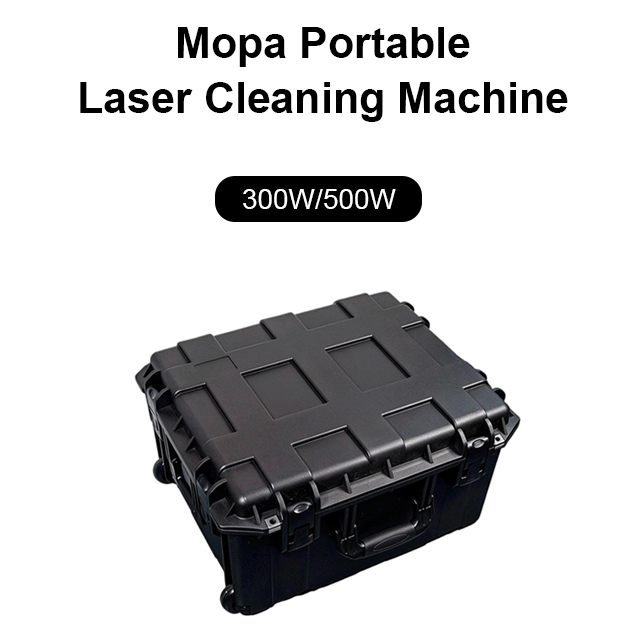

Dustproof & waterproof protective case, suitable for field work
Dustproof & waterproof protective case, suitable for field work
Applications
The laser cleaning machine can be applied to mechanical processing, cultural relics restoration, mold cleaning, food processing, electronic circuits, and other industries. With the characteristics of precise positioning, it can meet the processing of a variety of modeling workpieces and achieve efficient cleaning.
Laser Power | 300W | 500W |
Service Voltage | Single-phase 220V ±10%,50/60Hz AC | |
Total Power Consumption | ≤1100W | ≤3000W |
Operating Ambient Temperature | 0℃～40℃ | |
Humidity of the working environment | ≤80% | |
Laser Average Power | ≥300W | ≥500W |
Power Instability | ＜5% | |
Laser Mode of Operation | Impulse | |
Pulse Length | 13-500ns | 30-500ns |
Maximum Single Pulse energy | 5-15mJ | |
Power Adjustment Range (%) | 0-100 | |
Frequency Range (kHz) | 1-3000 | 1-4000 |
Fiber Length | 5m | |
Cooling-down Method | air cooling | |
Scan Range (length*width) | 0-300mm, continuously adjustable; The dual-axis supports 13 scanning modes; | |
Field Lens Focal Length (mm) | 210mm (optional 160mm/254mm/330mm/420mm) | 254mm (optional 160mm/210mm/330mm/420mm) |
Machine Dimensions | 620mm*520mm*360mm | |
Cleaner Head Weight | ＜1.25Kg | ＜1.4Kg |
Mode of Operation | Handheld/Automatic | |
