TH-6020E/TH-6025E/TH-8025E/TH-12025E
| Availability: | |
|---|---|
Model Features
Fiber Laser ,smaller seam .less wastage , precise positioning ,faster speed
With highly integrated system,high stability ,leading technology
Low cost and low energy loss
High energy pulse ,closed loop system
Equipment Applications
Used in 3C electronic products, sheet metal cutting, aerospace, automobile manufacturing, Marine manufacturing, instrument electronics, mechanical and electrical products, lighting, home appliances, precision parts and so on .

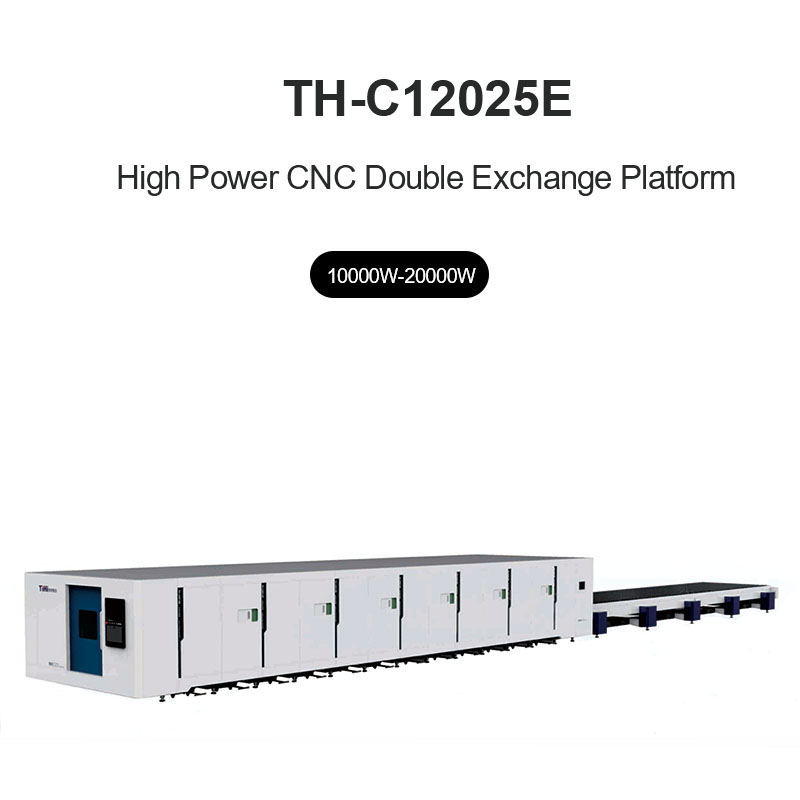

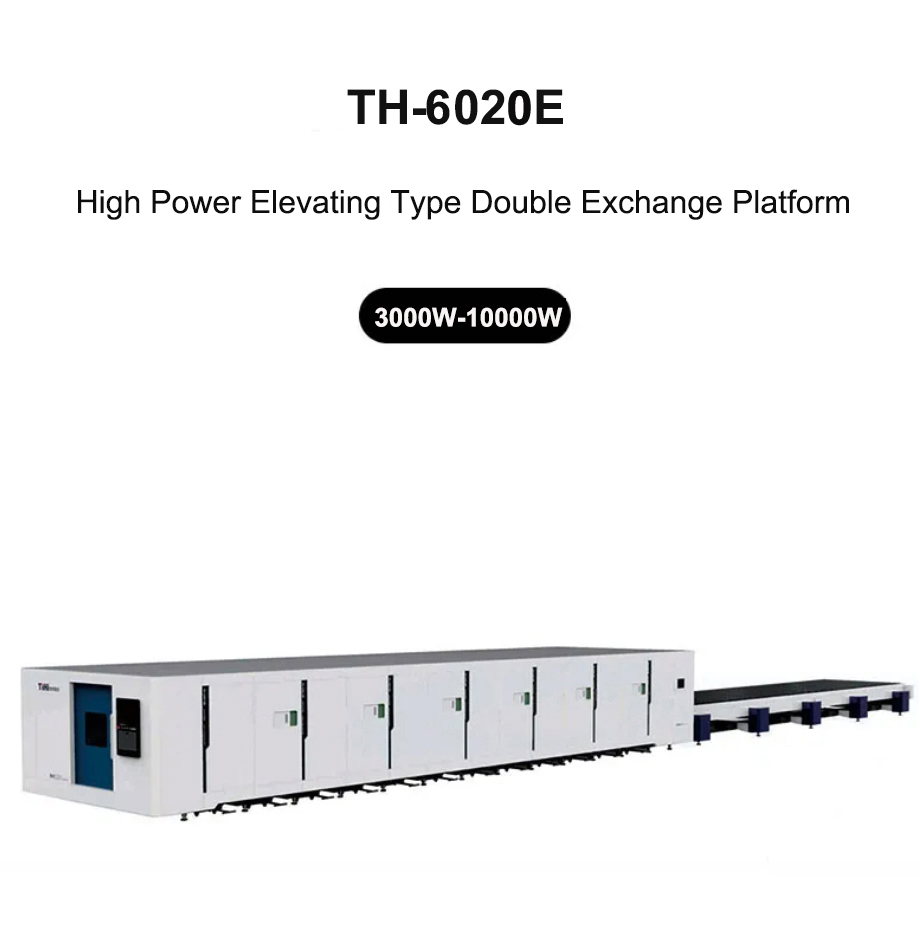

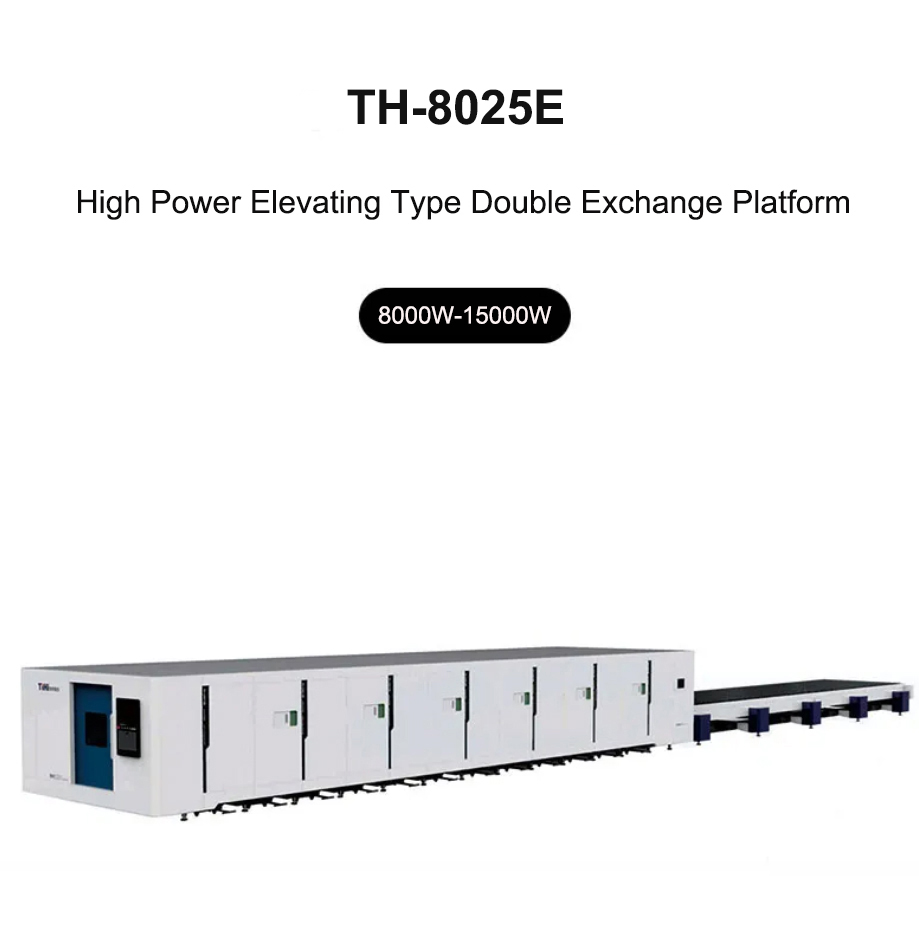

Model No: | TH-C12025E | TH-C8025E | TH-6025E | TH-C6020E |
Laser Power: | 10KW-20KW | 8KW-15KW | 6KW-12KW | 3KW-10KW |
Working Range | 12000x2500mm | 8000x2500mm | 6000x2500mm | 6000 x2000mm |
Y Axis Track: | 12000mm | 8200mm | 6200mm | 6200mm |
X Axis Track: | 2600mm | 2600mm | 2600mm | 2600mm |
Z Axis Track: | 150mm | 150mm | 150mm | 150mm |
X,Y Axis accuracy: | 0.02mm | 0.02mm | 0.02mm | 0.02mm |
X,Y Axis max acceleration : | 1.5G | 1.5G | 1.5G | 1.5G |
Max Idling Speed: | 150m/min | 150m/min | 150m/min | 150m/min |
Max load of work table: | 15T | 10T | 7.5T | 5T |
Net Weight: | 37T | 25T | 19.5T | 17T |
Dimension（LxWxH)： | 27500x4100x2300mm | 19000x4100x2260mm | 14900x4100x2260mm | 14900x4100x2260mm |
