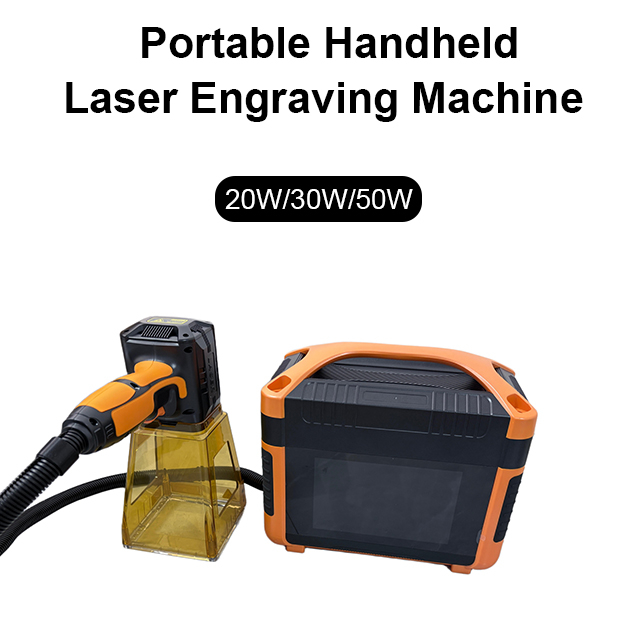

The Portable Handheld Fiber Laser Marking Machine offers a smart, compact marking solution for metals and select non-metals. Lightweight and highly transportable, it fits seamlessly in factories, workshops and for field service tasks.
Delivering fast, durable marks within seconds, it supports QR codes, barcodes and serial number engraving, performing reliably on stainless steel, aluminum, brass and certain plastics.
Model Features
Easy: One touch screen, simple operation, easy to learn, support PLT/DXF/BMP/JPG/PNG and other vector and bitmap input.
Intelligentize: 8-core processor, high security level, stable performance and fast response.
8 inch fully fitted LCD screen, one click trigger; Can be a multi-purpose machine, hardware diversity compatible.
Ergonomic handheld gun for easy access to uneven and hard-to-reach surfaces
Applications
Widely used in electronics, medicine, tobacco, leather, packaging, non-staple food and other industries, no consumables, non-toxic, pollution-free.
| Laser wavelength | 1064 nm | |
Focus lens | 130mm | |
Marking speed | ＜7000mm/s | |
Line width | 0.03mm | |
Marking speed | 0 – 9000 mm/s | |
Print speed | 800 characters (related to material and printing content) | |
File format | BMP、DXF、PNG、JPEG、PLT | |
Bar code | CODE 2-Of-5 Interleaved、CODE39、 CODE128、CODE126、QR、Codabar、CODE93、UPC-A、UPC-E、EAN-14、ITF-14、EAN128 | |
Power supply | 110V/220V AC.lithium battery(216wh) Lithium battery pack：20W/30W：216Wh, 50W：333Wh | |
| Operating temperature of the whole machine | 0 - 40° | |
| Overall Power Consumption | 145 - 250W | |
