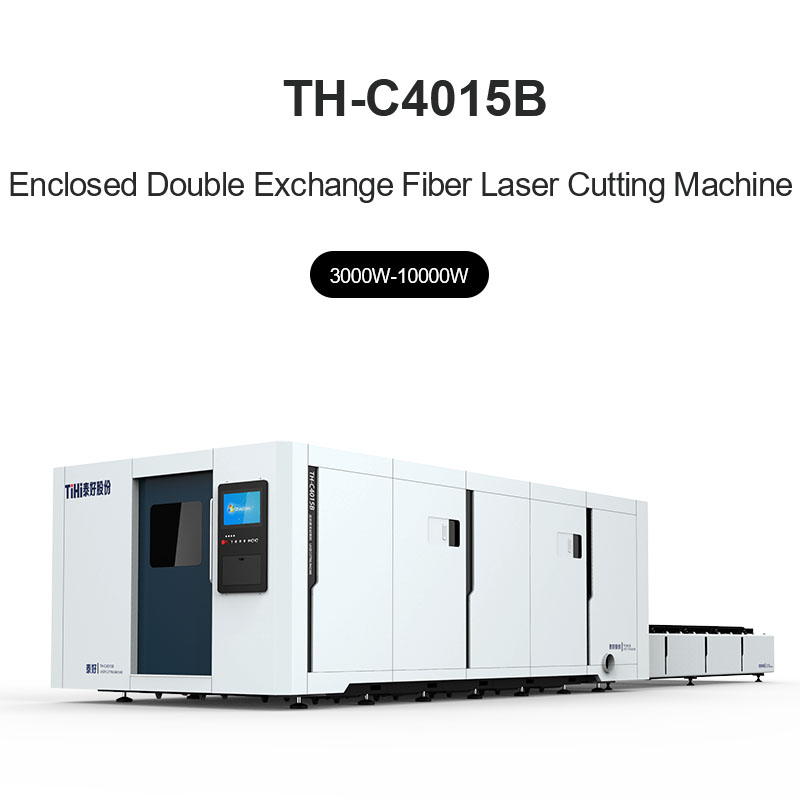

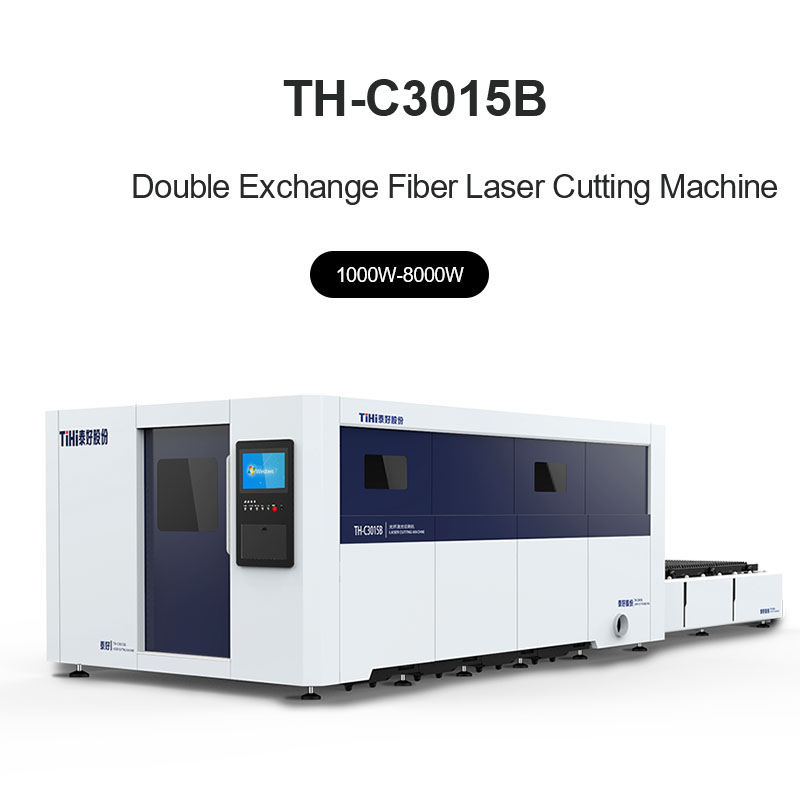

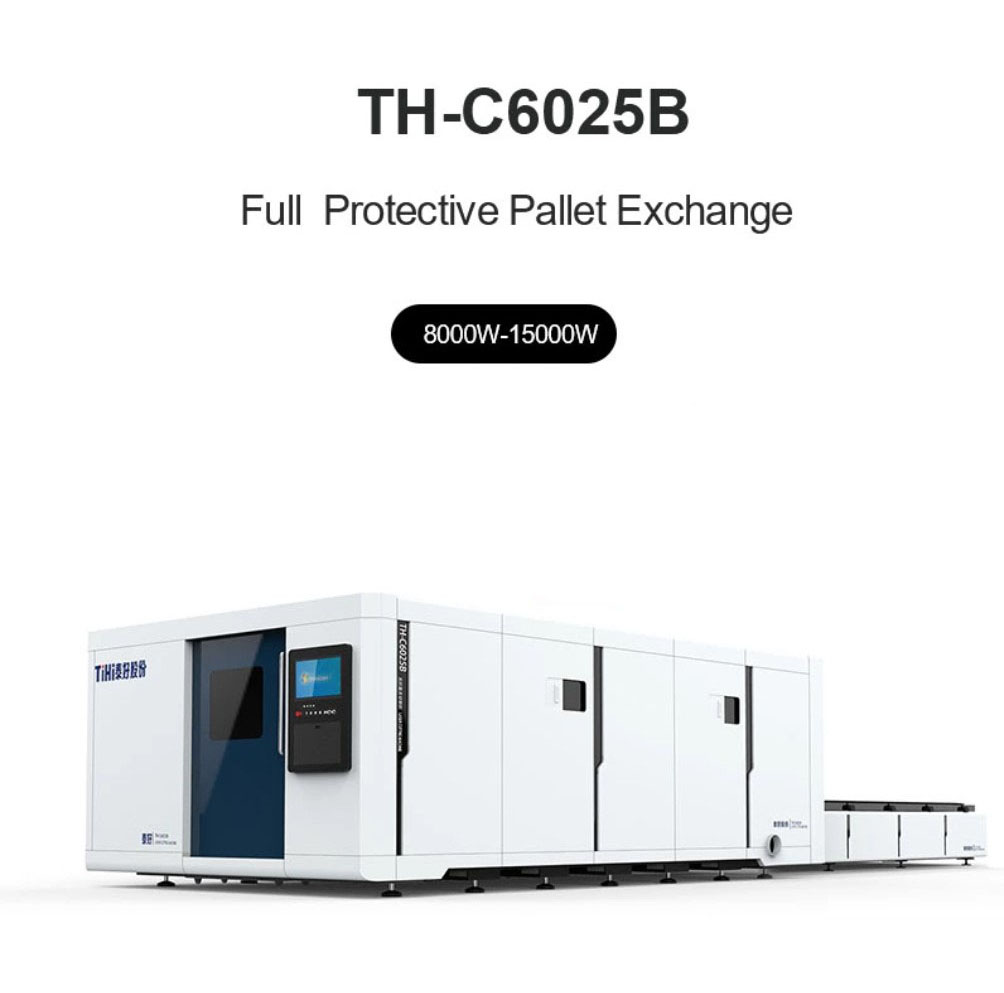

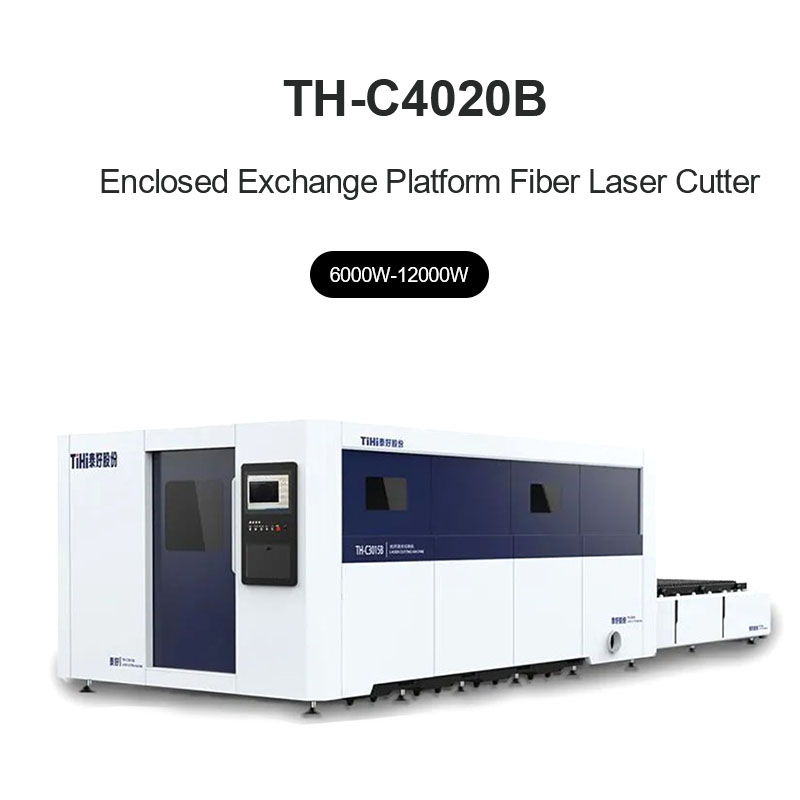

Enclosed Double Exchange Fiber Laser Cutting Machine TH-C3015B/TH-C4015B/TH-C4020B/TH-C6025B

Enclosed Double Exchange Fiber Laser Cutting Machine

Enclosed Medium Power Parallel Exchange Table Laser Cutting Machine. TH-C3015B/TH-C4015B/TH-C4020B/TH-C6025B

Model:
TH-C3015B/TH-C4015B/TH-C4020B/TH-C6025B

Availability:

Inquiry

Product Description

Model Features

Intelligent control ,High efficiency operation

Perfect cutting, Professional for thick metal sheet

High strength and High rigidity

Applications

Used in all kinds of metal plate processing, high/low voltage electrical cabinet production, textile machinery accessories, kitchenware, automobile, machinery, elevator, electrical parts and so on.

Technical Parameters

Model No:	TH-C6025B	TH-C4020B	TH-C4015B	TH-C3015B
Laser Power:	8KW-15KW	6KW-12KW	3KW-10KW	1KW-8KW
Working Range	6000x2500mm	4000x2000mm	4000x1500mm	3000x1500mm
Y Axis Track:	6200mm	4200mm	4200mm	3100mm
X Axis Track:	2600mm	2100mm	1550mm	1550mm
Z Axis Track:	270mm	270mm	270mm	270mm
X,Y Axis accuracy:	0.02mm	0.02mm	0.02mm	0.02mm
X,Y Axis max acceleration :	1.5G	1.5G	1.5G	1.5G
Max Idling Speed:	150m/min	150m/min	150m/min	150m/min
Max load of work table:	2.5T	2.0T	1.8T	1.2T
Net Weight:	17T	10T	9T	7.5T
Dimension（LxWxH)：	15000x4200x2200mm	11000x3600x2450mm	11000x2950x2315mm	8740x2950x2315mm

Enclosed Medium Power Parallel Exchange Table Laser Cutting Machine. TH-C3015B/TH-C4015B/TH-C4020B/TH-C6025B
