Name: Dual use cnc fiber laser cutting machine for aluminum pipe and sheet
Rating: 5.0 (78 reviews)

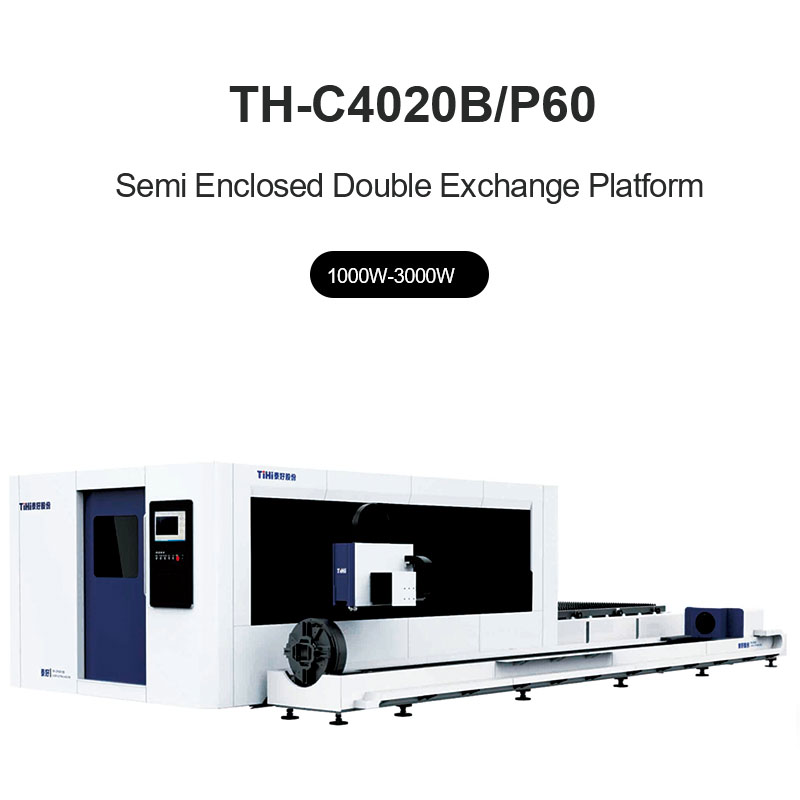

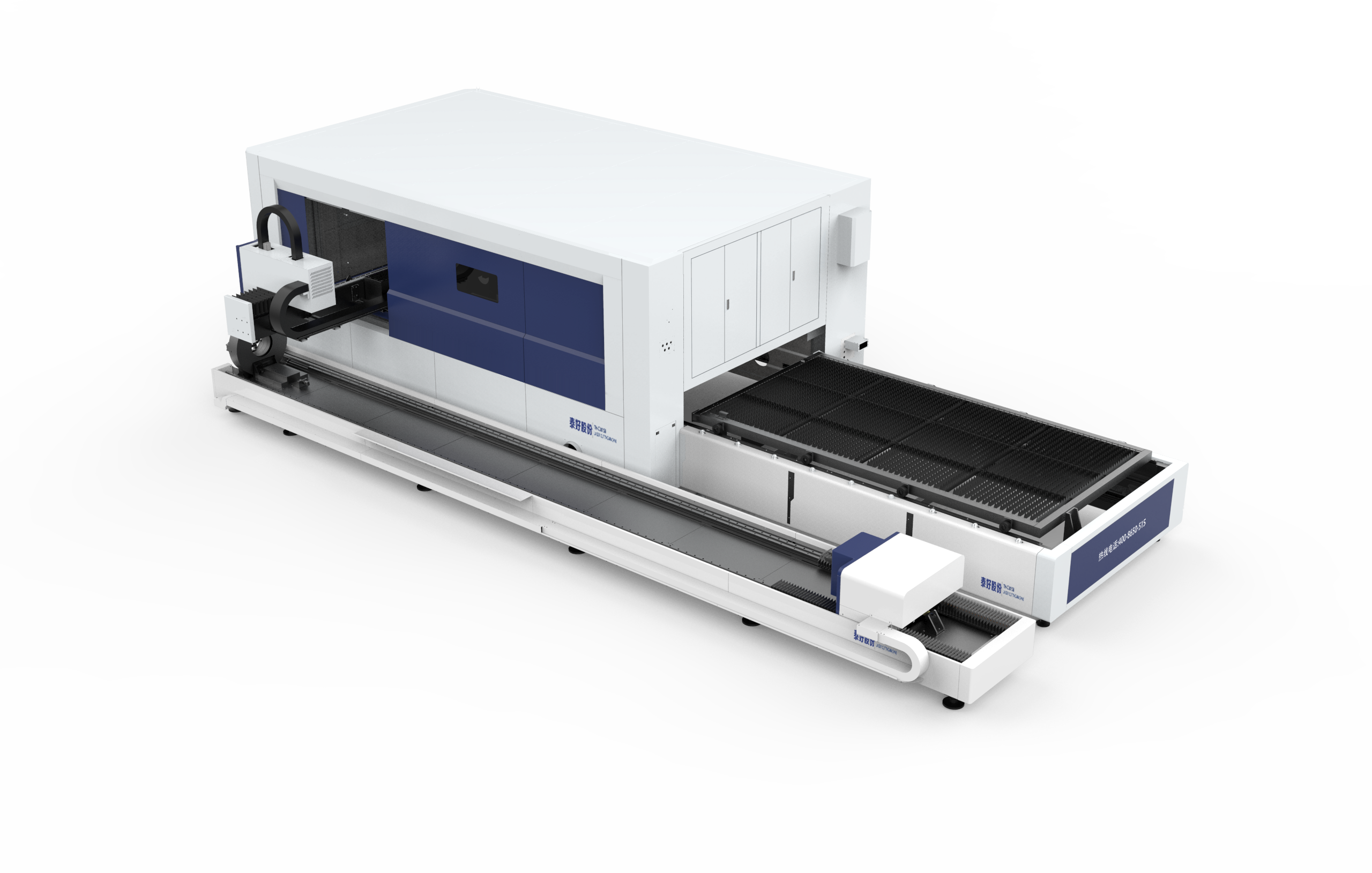

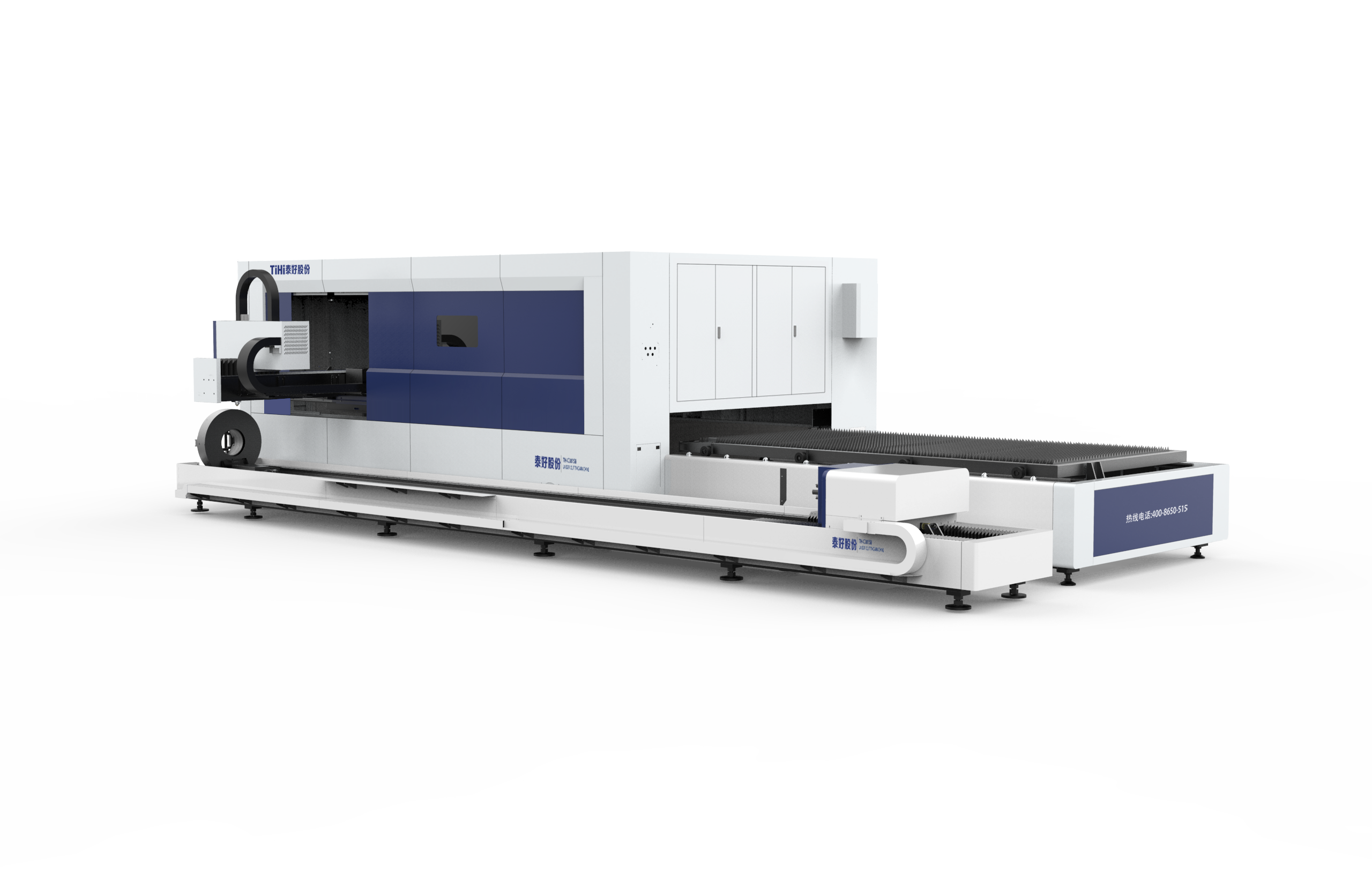

TH-C4020B/P60 laser cutting machine not only has an exchange table to improve work efficiency, but also has a casing to effectively reduce pollution and damage. Most importantly, it is also equipped with a rotary axis, which enables cutting of sheets and tubes.

Model:
TH-C4020B/P60

Availability:

Inquiry

Technical Parameters

Model No:	TH-C4020B/P60	TH-C3015B/P60	TH-C4020B/P30	TH-C3015B/P30
Laser Power:	1000W-3000W	1000W-3000W	1000W-2000W	1000W-2000W
Working Range	4000x2000mm ⊘10-⊘220mmx6000mm 150x150mmx6000mm	3000x1500mm ⊘10-⊘220mmx6000mm 160x160mmx6000mm	4000x2000mm ⊘10-⊘220mmx3000mm 160x160mmx3000mm	3000x1500mm ⊘10-⊘220mmx3000mm 160x160mmx3000mm
Y1 Axis Track:	4050mm	3050mm	4050mm	3050mm
Y2 Axis Track:	6200mm	6200mm	3200mm	3200mm
X Axis Track:	3325mm	2825mm	3325mm	2825mm
W Axis track:	Infinite rotation	Infinite rotation	Infinite rotation	Infinite rotation
Z Axis Track:	330mm	330mm	330mm	330mm
X/Y1/Y2 Axis accuracy:	0.02mm	0.02mm	0.02mm	0.02mm
Max acceleration :	1.0G	1.0G	1.0G	1.0G
Max Idling Speed:	100m/min	100m/min	100m/min	100m/min
Max load of work table:	1.5T	1T	1T	0.8T
Max .Load of pipe work table	0.4T	0.4T	0.2T	0.2T
Net Weight :	13T	9T	9.5T	7T
Dimension（LxWxH)：	10300x4200x1600mm	8300x3700x1600mm	9000x4200x1600mm	8300x3700x1600mm
