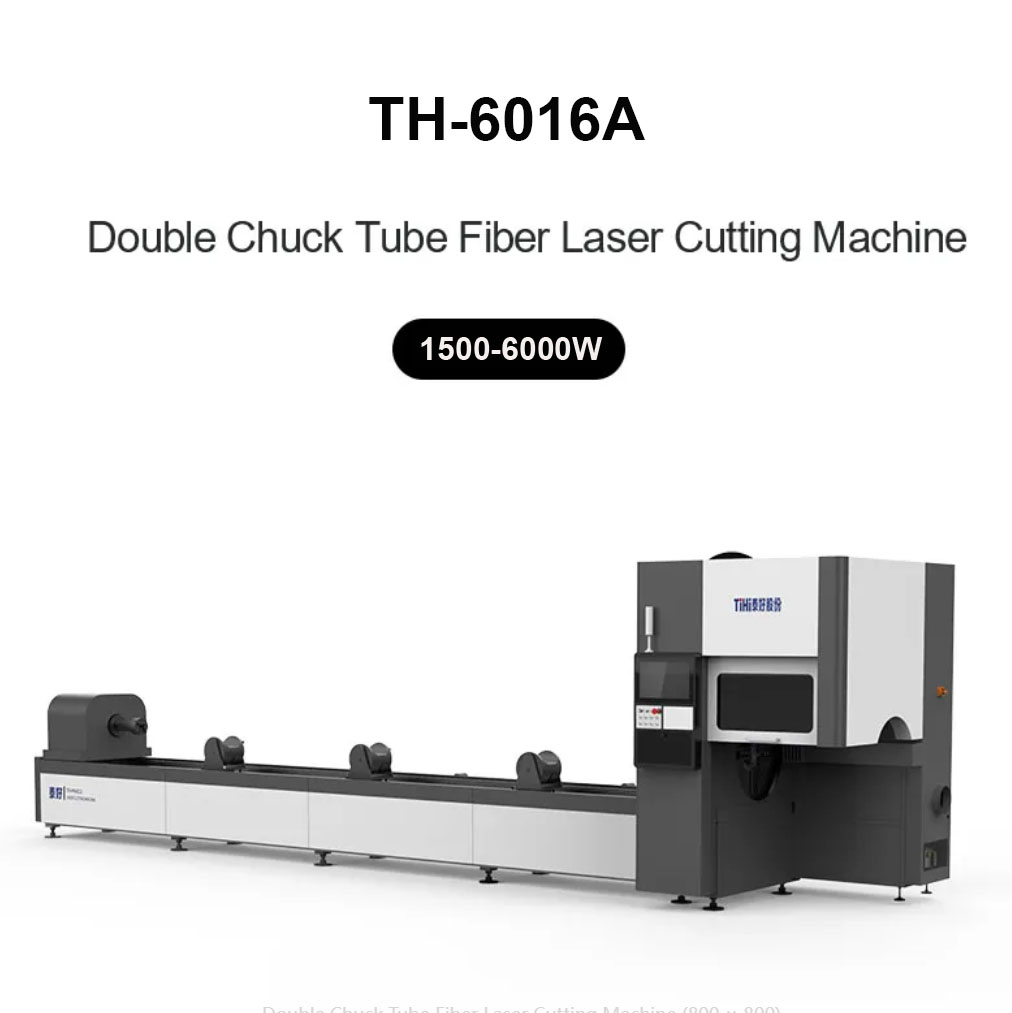

TH-P6013A/TH-P6016A/TH-P6022A/TH-P6035A/TH-P7013A/TH-P9035A/TH-P9060A
| Availability: | |
|---|---|
Model Features
Cutting stroke intelligent protection, flexible and reliable, high precision, high speed, stable performance, clamping powerful and wide range, easy and simple operation, small footprint
Applications
Used in fitness equipment, office furniture, kitchen cabinets and other industries of round tube, square tube, rectangular tube and special tube material processing.

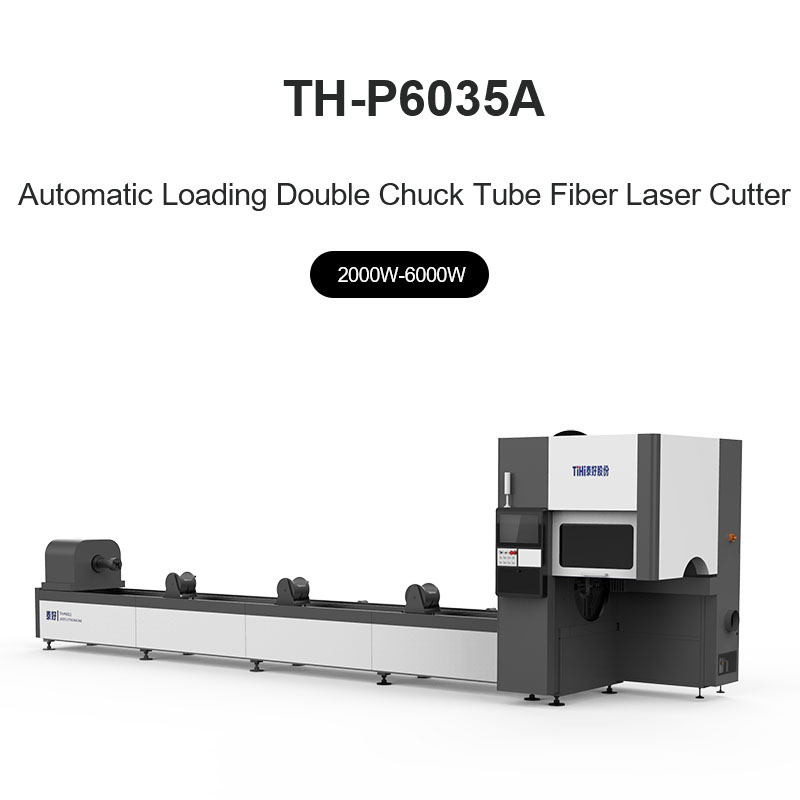

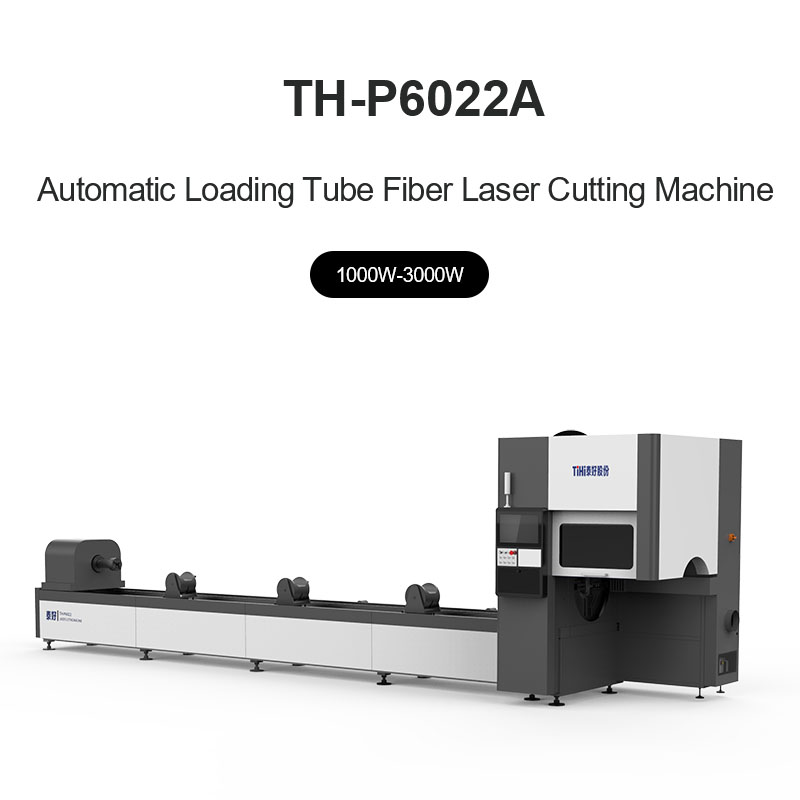

Model No: | TH-9060A | TH-P6035A | TH-P6022A |
Laser Power: | 3000W-8000W | 2000W-6000W | 1000W-3000W |
Working Range | ⊘100-⊘600mmx9000mm 250x250mmx6000mm | ⊘20-⊘350mmx6000mm 250x250mmx6000mm | ∅10-⊘200mmx6000mm 150x150mmx6000mm |
X Axis Track: | 700mm | 700mm | 700mm |
Y Axis Track: | 9000mm | 6600mm | 6600mm |
A,B,C Axis track: | Infinite rotation | Infinite rotation | Infinite rotation |
Z Axis Track: | 300mm | 300mm | 300mm |
Axis accuracy: | 0.02mm | 0.02mm | 0.02mm |
max acceleration : | 0.8G | 0.8G | 0.8G |
Max Idling Speed: | 60m/min | 80m/min | 80m/min |
Max load of work table: | 1000KG | 1000KG | 350KG |
Net Weight: | 12T | 7T | 6.8T |
Dimension（LxWxH)： | 11200x1850x2250mm | 9300x1850x2250mm | 9300x1850x2250mm |
