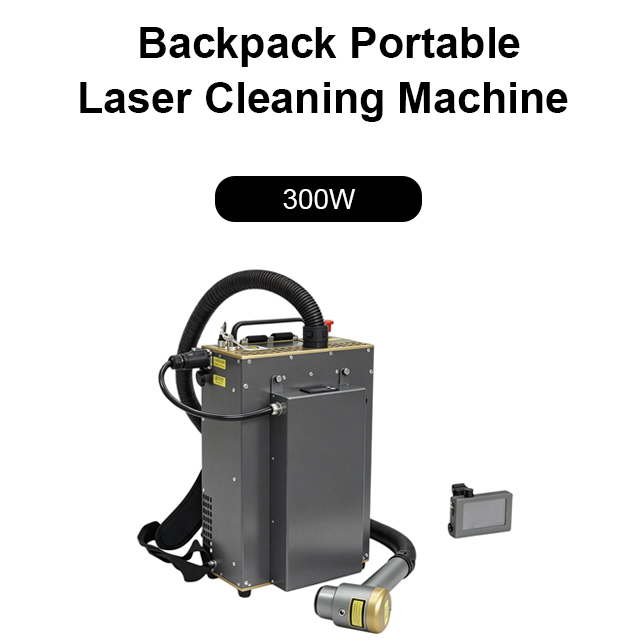

This backpack portable fiber laser cleaning machine is a lightweight pulsed laser surface cleaner designed for mobile on-site work. Equipped with ergonomic shoulder straps, it frees your hands and enables operation in narrow spaces, high places and hard-to-reach areas. It comes with a separate touchscreen controller for convenient parameter adjustment.
Model Features
Backpack wearable design, ultra-light and easy to carry
Detachable handheld cleaning gun
Separate touch control panel for flexible setting
Non-contact cleaning, no damage to base material
Air cooling design, compact structure
Applications
Ideal for rust removal, paint stripping, oxide layer and grease cleaning. Widely used for construction steel maintenance, cultural relic restoration, bridge inspection, aerospace parts refurbishment, ship field repair, antique renovation and outdoor on-site cleaning tasks.
Laser Power | 300W | |
Service Voltage | Single-phase 220V ±10%,50/60Hz （Output DC 48V） ACOptional battery upgrade available; 50W continuous operation for 80min. | |
Total Power Consumption | ≤1100W | |
Operating Ambient Temperature | 0℃～40℃ | |
Humidity of the working environment | ≤80% | |
Power Instability | < 5 % | |
Laser Mode of Operation | Impulse | |
Pulse Length | 13-500ns | |
Maximum Single Pulse Energy | 5mJ-15mJ | |
Power Adjustment Range (%) | 10-100 | |
Frequency range (kHz) | 1-3000 | |
Fiber Length | 1.5m | |
Cooling-down Method | air cooling | |
Scanning Range | 0-300mm, continuously adjustable; The dual-axis supports 13scanning modes | |
Depth of Focus | About 5mm | |
Field Lens Focal Length | 210mm（Optional 160mm/254mm/330mm/420mm） | |
Machine Dimensions | Approx. 268 × 135(Batteries not included)/191.5(Batteries included) × 445 mm | |
Mode of Operation | Handheld/Automatic | |
