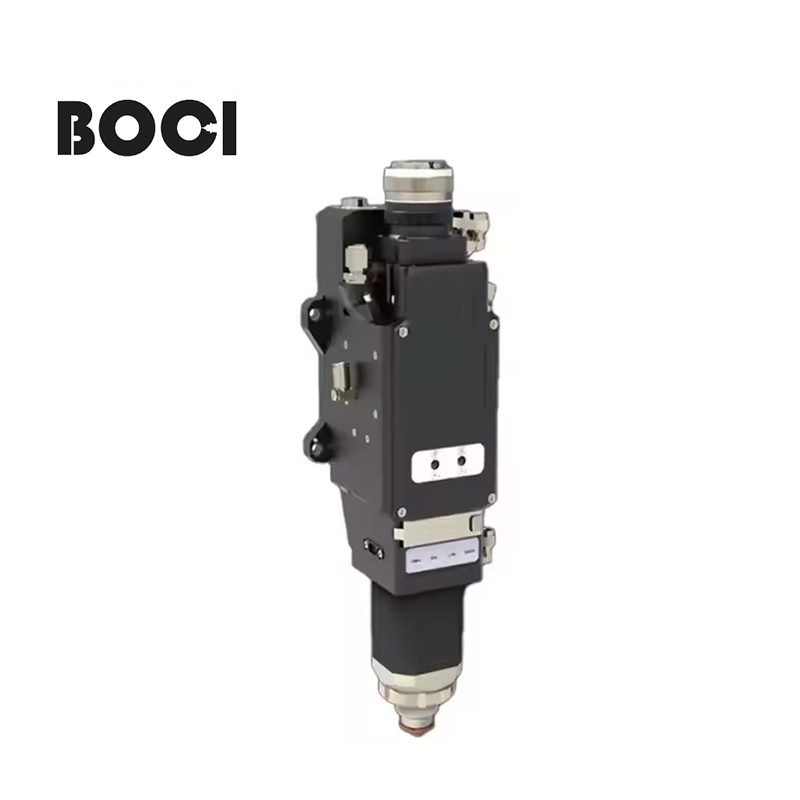

BLT4X1 Features:
Closed-loop Monitoring (Smarter and Safer)
Built-in multiple sets of sensors, real-time closed-loop intelligent monitoring, rapid diagnosis of problems and proactive warning.
Anti-Collision Protection(More convenient maintenance)
The anti-collision design of the cutting head effectively reduces the depot-repair probability, without technical support, customers can replace the broken parts by themselves, and the maintenance cost is lower.
Air Pressure Monitoring(Improve cutting stability)
Real-time monitoring of gas flow rate during cutting, effectively reduces the affects of air pressure deficiency/exaggerated on cut surface quality.
Protective Lens Temperature Monitoring(Increase process stability)
Real-time monitoring of the status of the protective lens，warni ng system can work qui ckl y when the lens ar e polluted and it can reduce the negative effects of polluted lens on cutting quality.
Collimation and Focusing(Zoom faster)
Reduce wating time for zooming ,more coherent cutting experience makes processing more efficient
Water Cooling(More stable cutting quality)
Water-cooled design covering 90% of the optical path of the cutting head makes cutting more stable.
Slant Cutting(One-time forming)
With the AB swivel axis, it can support cutting V, Y, X and other types of grooves, with largest of ±45° groove and one-time forming, reducing the slant opening processes, decreasing costs and increasing efficiency.
Pan-seal Failure Detection(Extend the service life of protective lens)
Real-time monitoring of the sealing effectiveness of the protected area, prolong the service life of the protective lens and ensure the stable production of customers.
Built-in Amplifier(Improve capacitance stability)
Strong anti-interference ability, more stable capacitance.
3D Sensor Head(Multi-type pipe cutting)
It can realize cutting of different types of pipes: round pipe, square pipe, channel steel, I-beam, etc.
Dust-proof Front Cover(Better sealing)
A dust-proof cover is added to the optical lens area to improve the sealing level of the core chamber and extend the core lens life.
Four Sets of Protective Lens(Extra protection to extend core lens life)
Establish multiple protective barriers to improve the sealing level of the core chamber.
