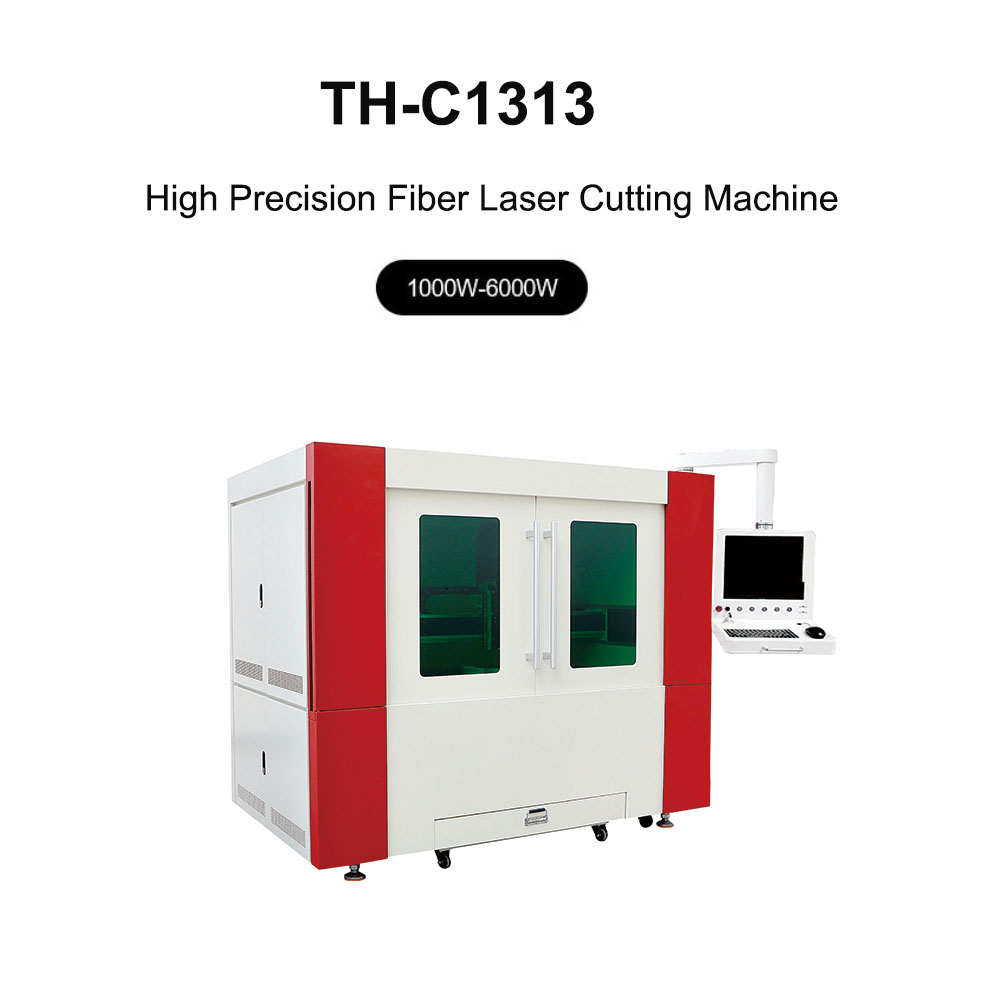

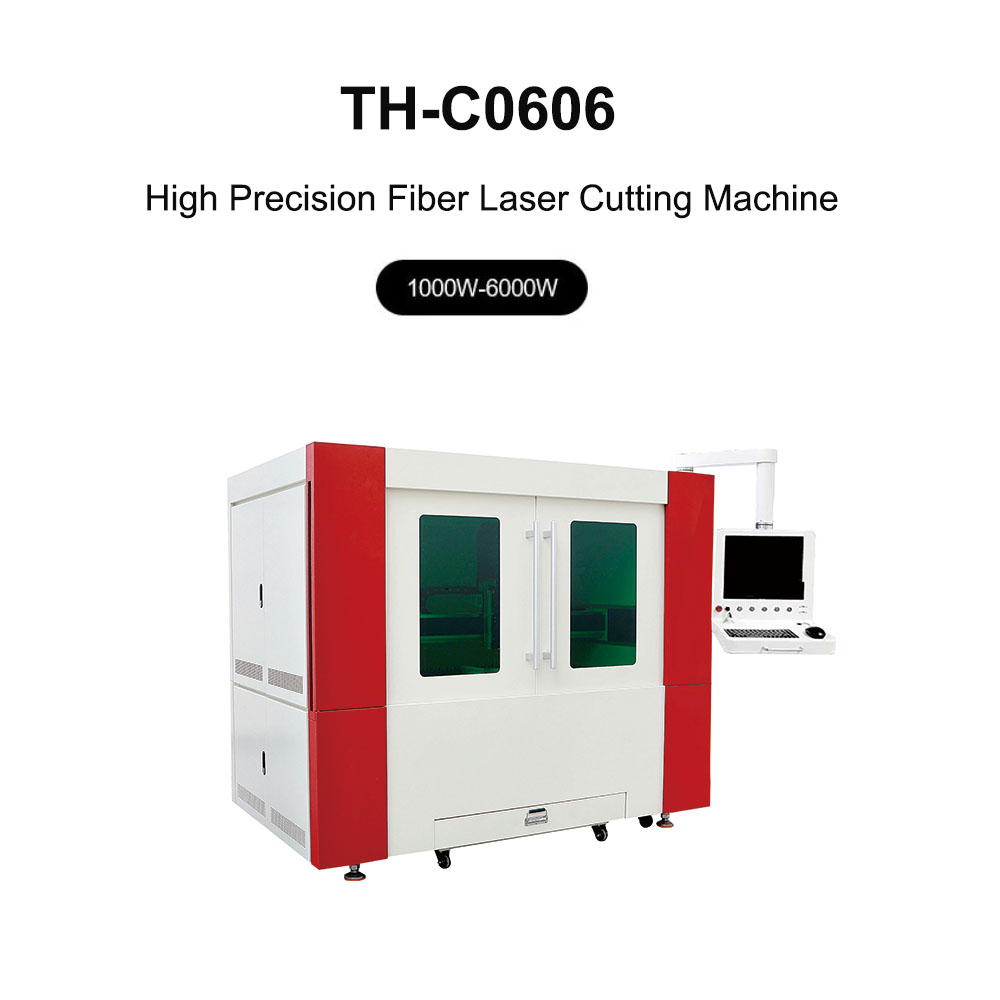

TH-C0606/TH-C0606S,TH-C0608/TH-C0608S/TH-0906/TH-C0906S/TH-C1010/TH-C1313
| Availability: | |
|---|---|
Model Features
The whole bed has good rigidity, the guide rail adopts fully enclosed protection to reduce dust pollution, and the servo motor is used to drive both sides, which has high precision, high acceleration and fast speed. Imported high-precision ball screw drive, imported high-precision linear guide guide. Dedicated laser control system and professional CAM software, powerful, stable operation, easy to learn. Laser processing is a non-contact flexible processing, is not affected by the appearance of the workpiece, can be processed any graphics. Optional visual positioning system can be used for precise cutting of specific plates such as corroded printing.
Applications
Used in sheet metal processing, glasses metal frame, electronic circuit, metal crafts, auto parts, microelectronics precision requirements of high volume products.
Model No: | TH-C0606 | TH-C0608 | TH-C0906 | TH-C1313 | TH-C0606-S(linear motor) |
Laser Power: | 1000W-6000W | 1000W-6000W | 1000W-6000W | 1000W-6000W | 1000W-6000W |
Laser Wave length | 1040-1080mm | 1040-1080mm | 1040-1080mm | 1040-1080mm | 1040-1080mm |
Working Range | 600x600mm | 600x800mm | 900x600mm | 1300x1300mm | 600x600mm |
Z Axis Track: | 50mm | 50mm | 50mm | 50mm | 50mm |
Positioning accuracy: | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm | ±0.01mm |
Cut seam width | 0.05-0.10mm(according to material) | 0.05-0.10mm(according to material) | 0.05-0.10mm(according to material) | 0.05-0.10mm(according to material) | 0.05-0.10mm(according to material) |
Max .Speed: | 30m/min((according to material) | 30m/min((according to material) | 30m/min((according to material) | 30m/min((according to material) | 60m/min((according to material) |
XY Axis max acceleration : | 1.0G | 1.0G | 1.0G | 1.0G | 1.5G |
Driving Mode | （Precision screw dual drive） | （Precision screw dual drive） | （Precision screw dual drive） | （Precision screw dual drive） | （direct linear drives） |
Power Supply: | AC-380V±5%/50Hz/30A | AC-380V±5%/50Hz/30A | AC-380V±5%/50Hz/30A | AC-380V±5%/50Hz/30A | AC-380V±5%/50Hz/30A |
Cooling Mode: | （Water Cooling) | （Water Cooling) | （Water Cooling) | （Water Cooling) | （Water Cooling) |
Net Weight : | 1.4T | 1.6T | |||
Dimension（LxWxH)： | 1900x1450X1850mm | 1900x1450x1850mm |
